The Power-One Aurora PVI-110.0-TL-IT is a high-power three-phase photovoltaic inverter designed for commercial and industrial solar installations. Manufactured by Power-One S.p.A. in Italy, it represents a professional solution for converting direct current (DC) generated by photovoltaic modules into three-phase alternating current (AC) synchronized with the electrical grid.
The unit shown in the photos is a Multimaster configuration, consisting of 2 inverter modules, capable of handling high conversion power levels while ensuring operational continuity thanks to its modular architecture. The Aurora series is renowned for its high energy efficiency, industrial reliability and advanced Maximum Power Point Tracking (MPPT) management.

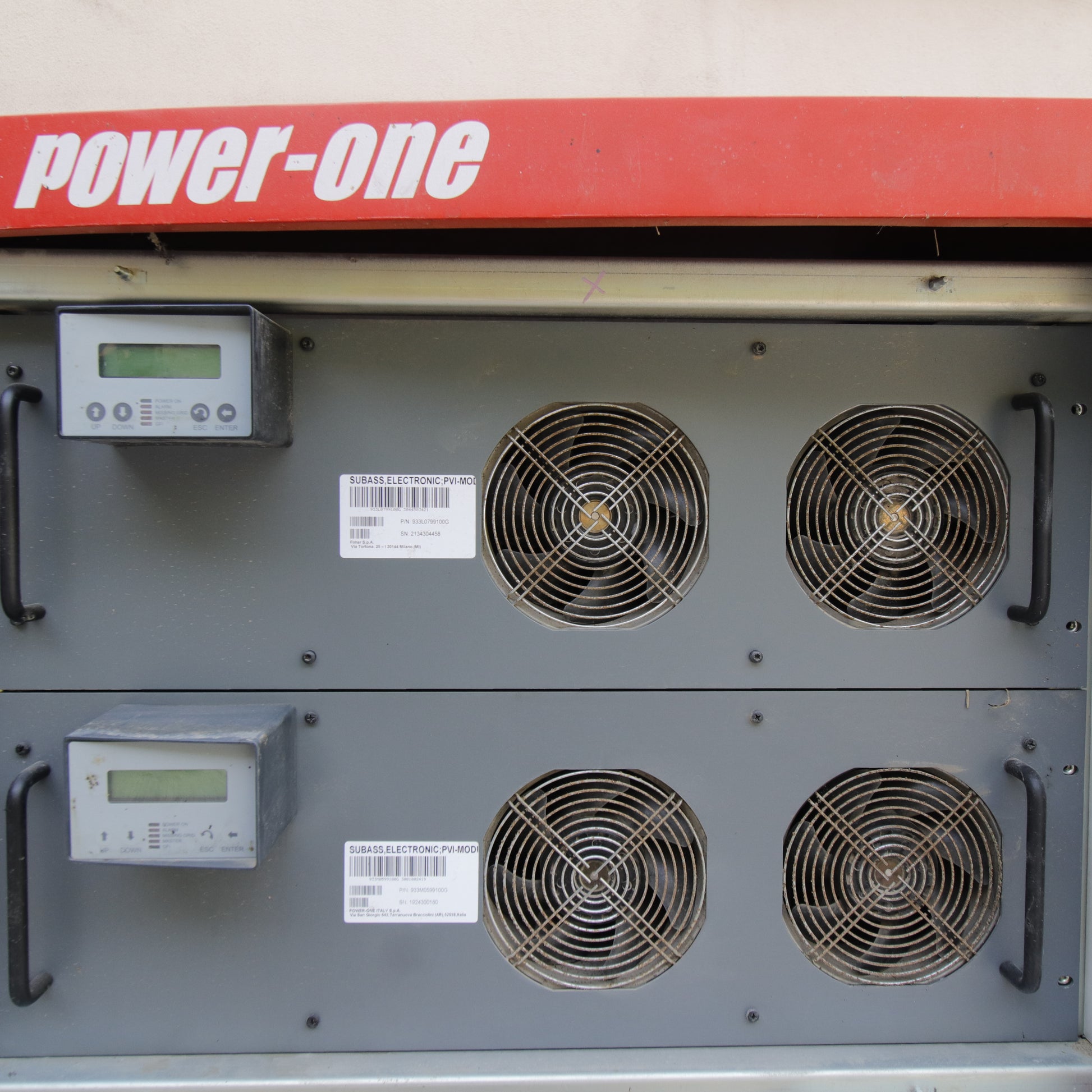

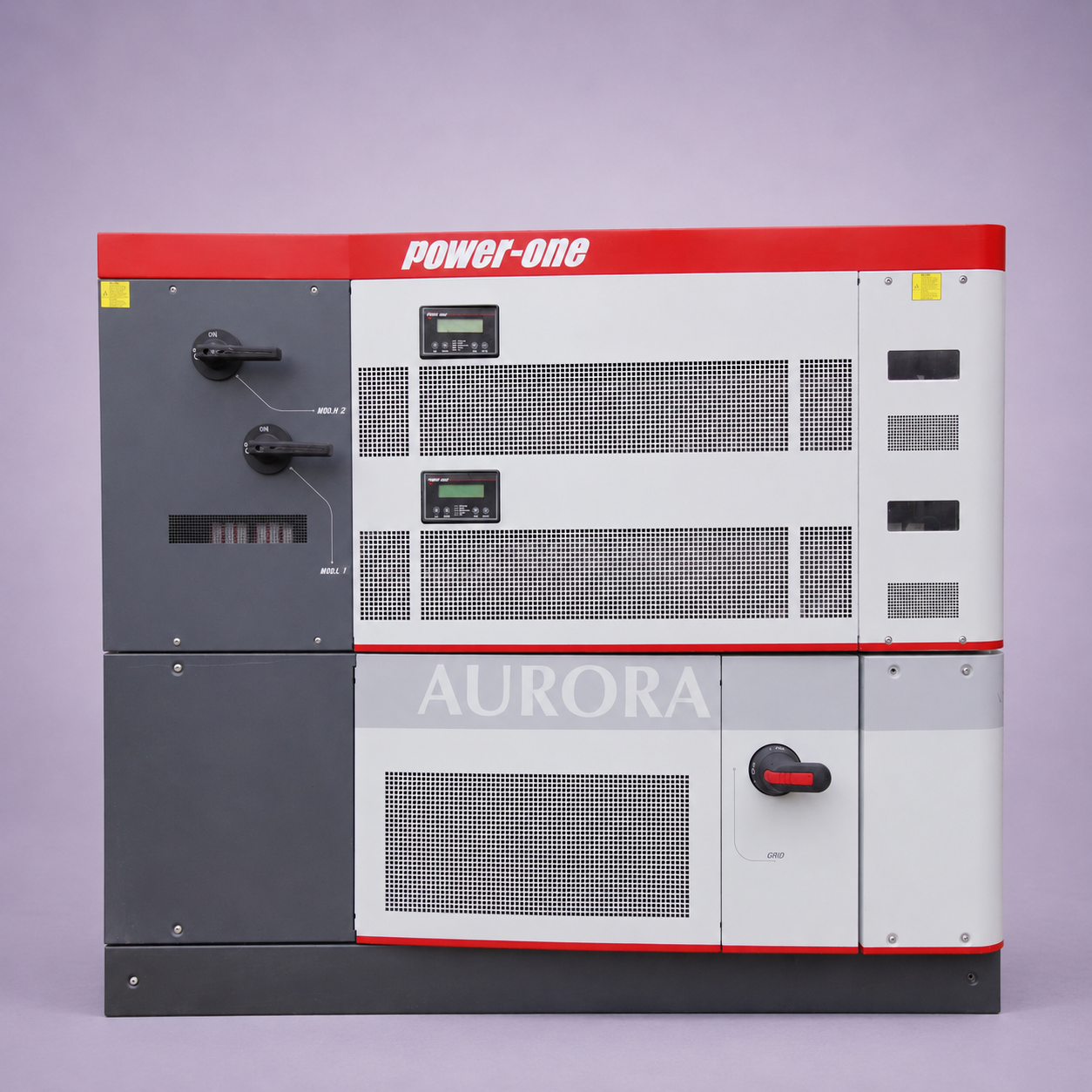

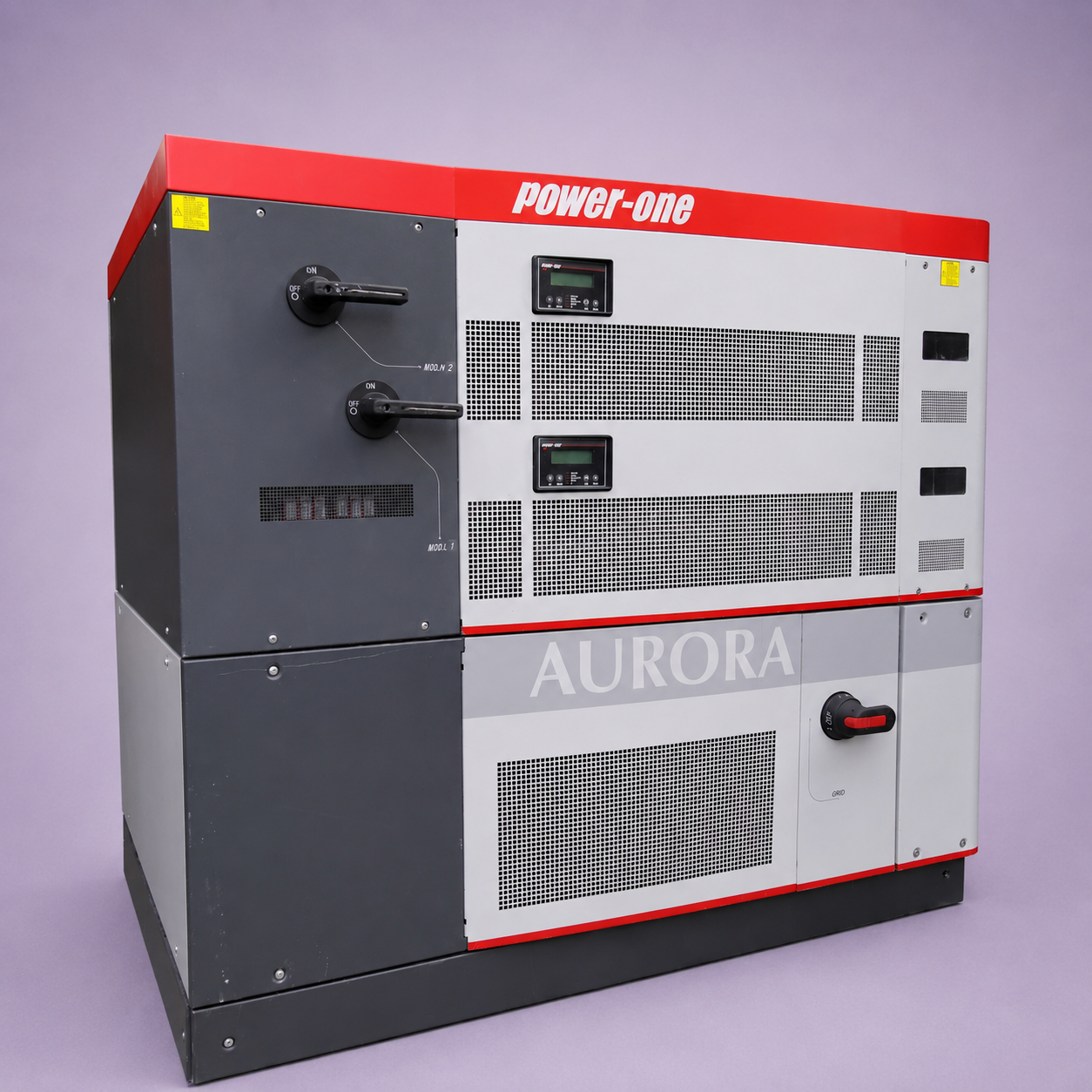

The structure is built within a robust ventilated metal cabinet equipped with a front user interface featuring LCD displays, integrated disconnect switches and monitoring systems for controlling the operating parameters of the photovoltaic installation.

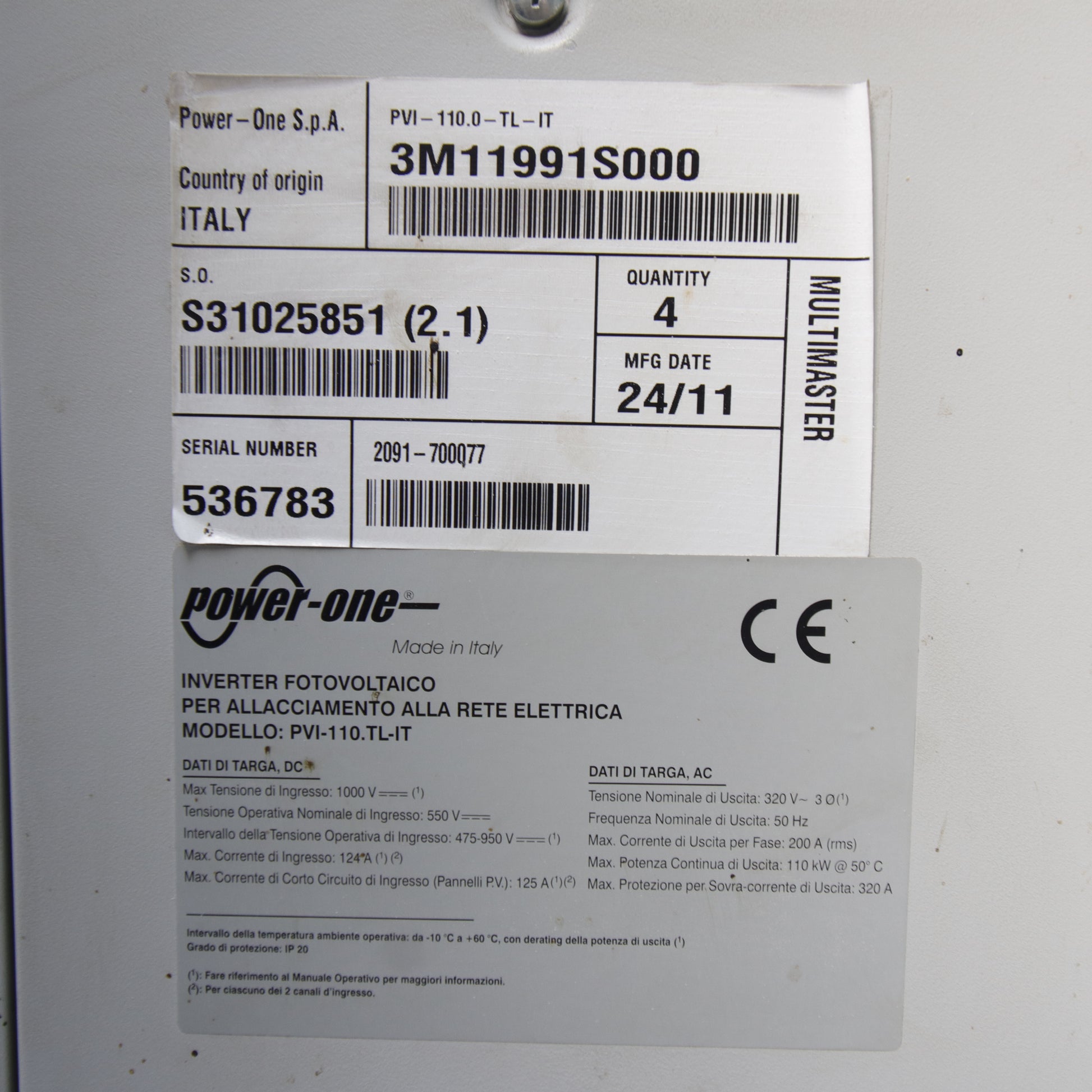

Technical Specifications from the Nameplate
Manufacturer
Power-One S.p.A.
Country of Origin: Italy
Series: Aurora
Model
PVI-110.0-TL-IT
Configuration Code: 3M11991S000
System: Multimaster
DC Side (Photovoltaic)
Maximum Input Voltage: 1000 VDC
Nominal Operating Voltage: 550 VDC
MPPT Operating Range: 475 – 950 VDC
Maximum Input Current: 124 A
Maximum Short-Circuit Current: 125 A
AC Side (Grid)
Nominal Output Voltage: 320 VAC Three-Phase
Nominal Frequency: 50 Hz
Maximum Output Current per Phase: 200 A RMS
Nominal Continuous Power: 110 kW
Reference Temperature: 50 °C
Maximum Overcurrent Protection: 320 A
Operating Conditions
Ambient Temperature: -10 °C to +60 °C
Protection Rating: IP20
Main Features
✔ High-efficiency DC/AC conversion
✔ Direct connection to the three-phase electrical grid
✔ Modular Multimaster architecture
✔ Integrated LCD displays for local monitoring
✔ High-reliability forced-air cooling
✔ MPPT management to maximize energy production
✔ Integrated disconnect switches for safety and maintenance
✔ Advanced diagnostics and plant monitoring
Applications
Ideal for:
✔ Industrial photovoltaic installations
✔ Ground-mounted solar power plants
✔ Large commercial solar installations
✔ Industrial and logistics rooftop systems
✔ Grid-connected energy production plants
Identification Data
Model: PVI-110.0-TL-IT
Inverter Serial Number: 536783
Order Code: S31025851 (2.1)
Production Date: 24/11

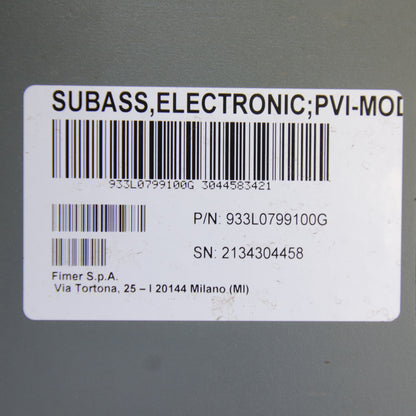

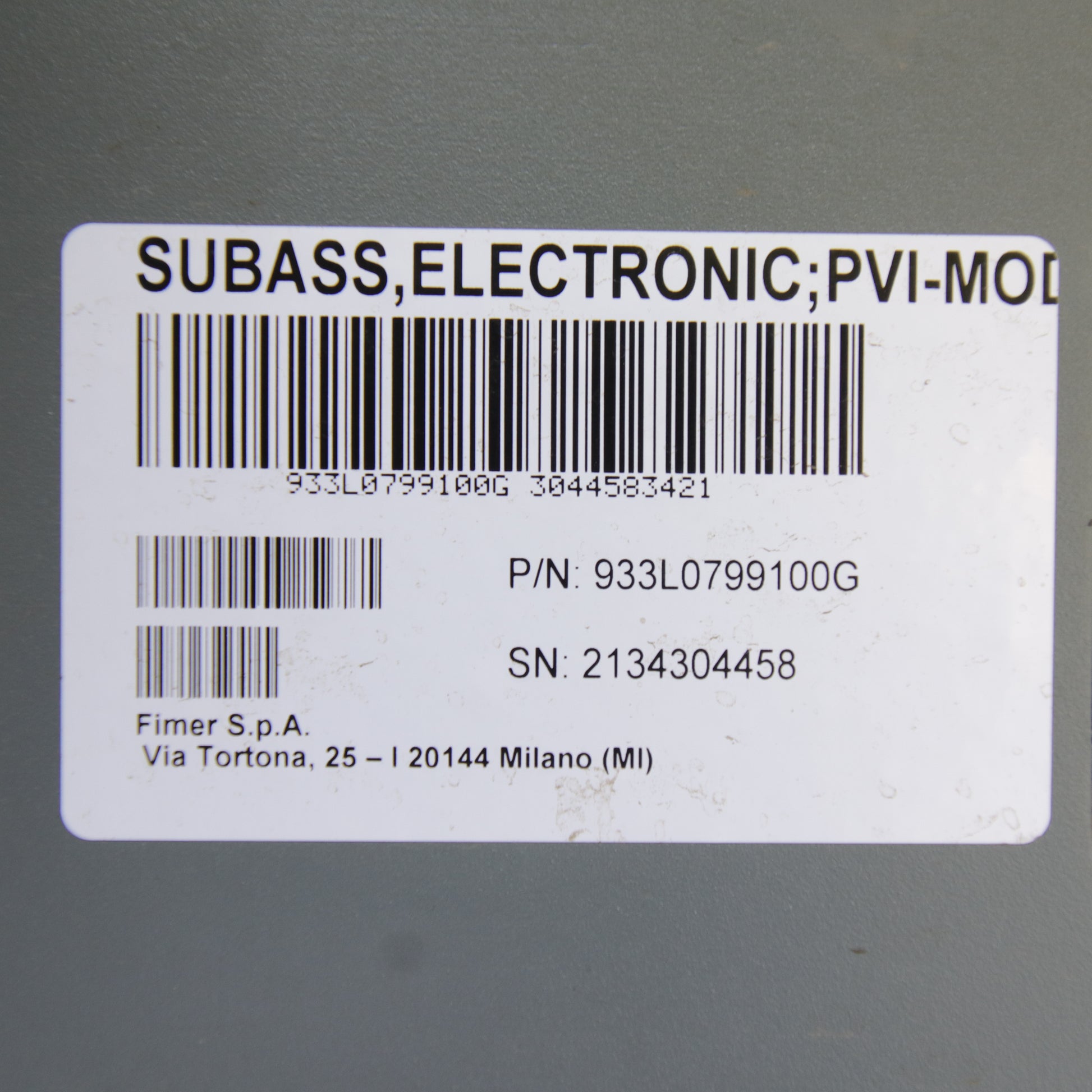

Board/Module Part Number: 933L0799100G
Module Serial Number: 2134304458
Product Condition
Used industrial unit removed from a professional photovoltaic installation. The presence of power modules, control displays and integrated disconnect switches makes this system suitable as a spare part, retrofit solution, repair unit or source of components for Power-One Aurora systems of the same series.
🚀 Professional Power-One Aurora solution for industrial photovoltaic applications requiring high conversion efficiency, modular architecture, operational reliability and advanced monitoring capabilities for large-scale grid-connected solar power systems.
