Phoenix Contact VALVETRAB VAL-MS 500 ST is a Type 2 Surge Protective Device (SPD) designed to protect electrical installations up to 600 V AC against transient overvoltages.

The device consists of the VAL-MS 500 ST plug-in protection module and the VAL-MS BE/FM base, which includes a remote signaling contact (FM – Fault Monitoring) for status monitoring. This feature enables remote supervision of the arrester’s operational state, making it ideal for installations requiring system monitoring.

Engineered for DIN rail mounting, this SPD provides effective protection against transient overvoltages caused by indirect lightning strikes and switching operations, safeguarding distribution boards and sensitive equipment.

Thanks to its pluggable protection module, maintenance is quick and straightforward: in the event of activation, only the protection cartridge needs to be replaced without disconnecting the entire base.

The industrial-grade build quality of Phoenix Contact ensures reliability, compliance with international standards, and long operational life even in demanding industrial environments.

⚙️ Main Technical Specifications

Manufacturer: Phoenix Contact
Series: VALVETRAB

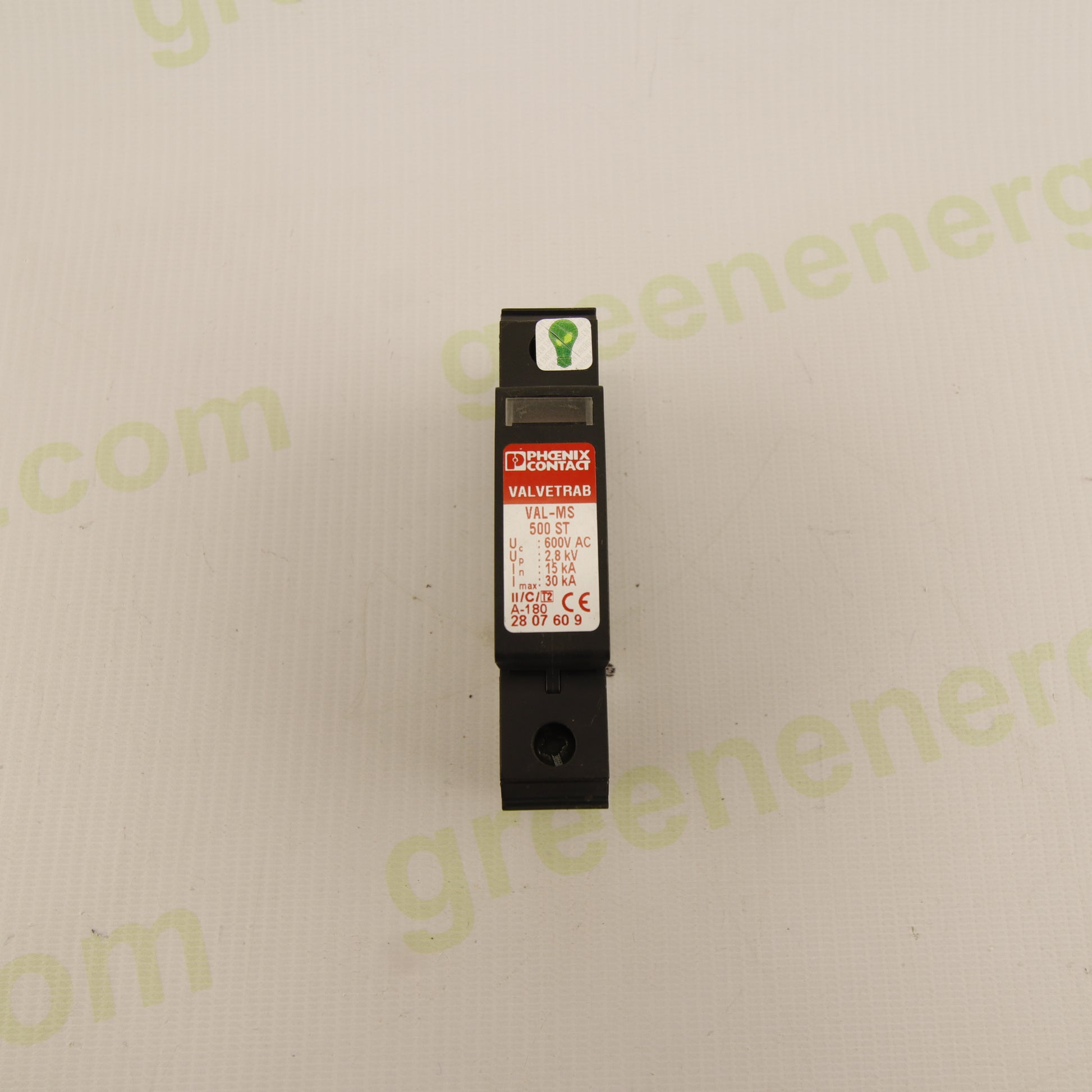

Protection Module: VAL-MS 500 ST

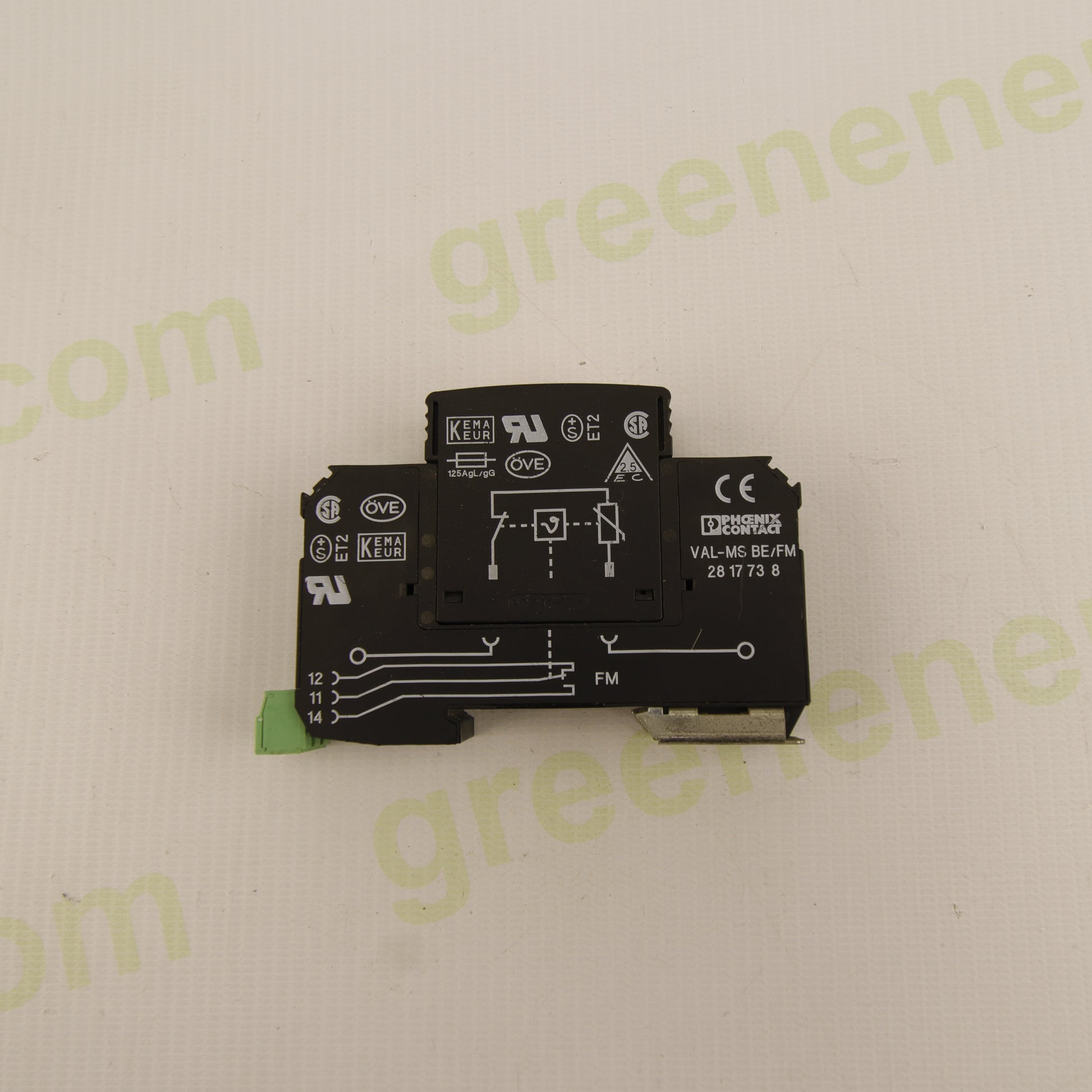

Base: VAL-MS BE/FM
SPD Type: Type 2 (T2)
Mounting: DIN rail

🔌 Electrical Data

• Maximum continuous operating voltage (Uc): 600 V AC

• Voltage protection level (Up): 2.8 kV

• Nominal discharge current (In): 15 kA (8/20 μs)

• Maximum discharge current (Imax): 30 kA (8/20 μs)

• Category: II / C (Type 2)

🔔 Additional Features

• Remote fault signaling contact (FM)

• Visual status indicator

• Plug-in replaceable protection module

• Recommended backup fuse: up to 125 A gG (as marked)

📜 Certifications

• CE

• UL Recognized

• KEMA-KEUR

• OVE

🔧 Key Features

✔️ Type 2 surge protection device
✔️ Suitable for systems up to 600 V AC
✔️ Maximum discharge current 30 kA
✔️ Replaceable plug-in module
✔️ Remote fault signaling contact (FM)
✔️ Easy DIN rail installation
✔️ Industrial-grade Phoenix Contact design

🔗 Ideal Applications

✔️ Industrial electrical panels
✔️ Power distribution systems
✔️ AC-side photovoltaic installations
✔️ Protection of machinery and sensitive electronics
✔️ Installations requiring remote SPD status monitoring
