Description
Used product. Set of 3 EPCOS power capacitors, model B32362-A3207-J030, with a nominal capacitance of 200 µF and tolerance of ±5%. The components feature cylindrical metal housings with screw terminals for electrical connection and mounting elements.

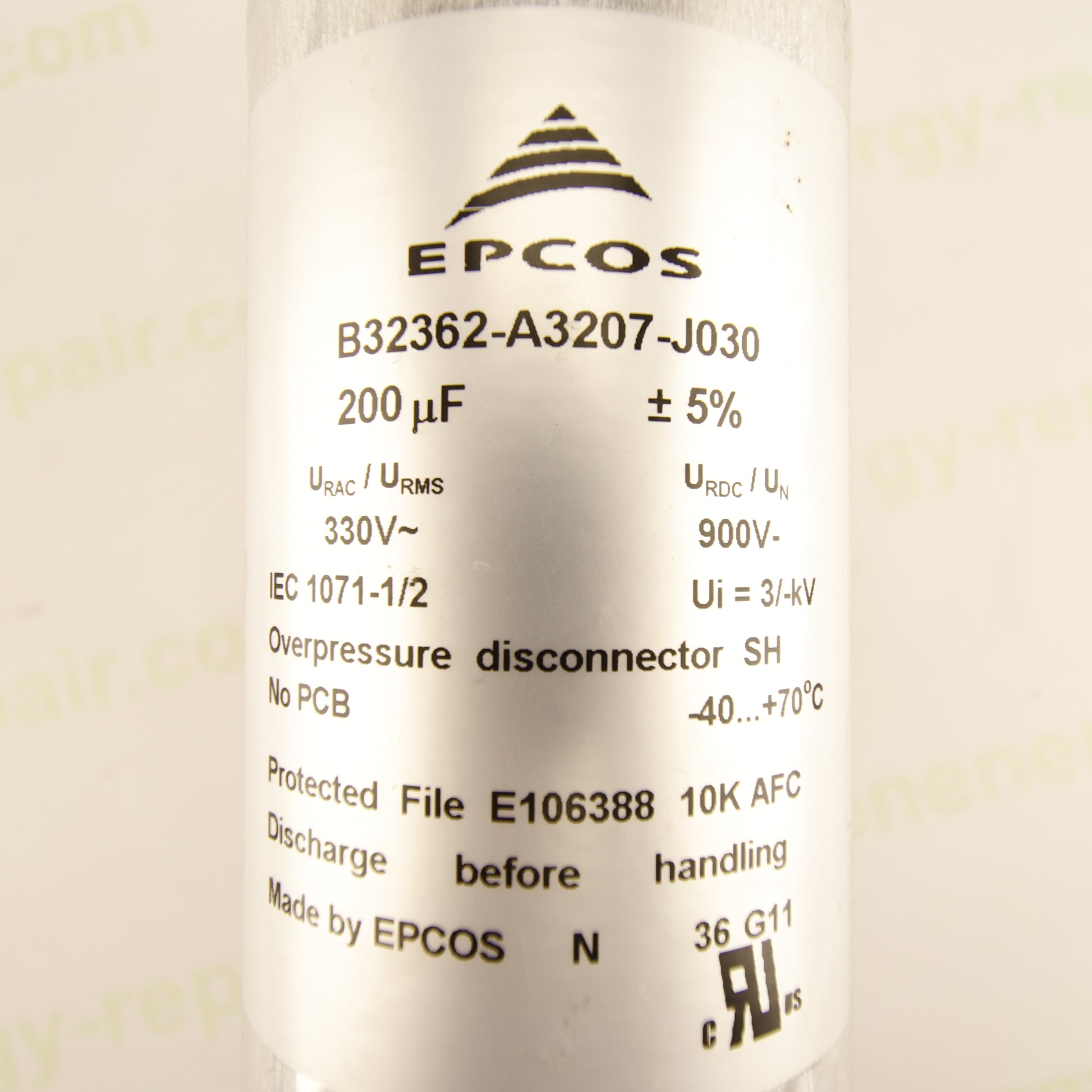

The visible markings indicate that the capacitors are designed for power electronics and energy conversion applications, with possible use in AC and DC circuits. The capacitors also feature a safety system with an Overpressure Disconnector (SH).
⚙️ Technical Specifications
-
Brand: EPCOS
-
Model: B32362-A3207-J030
-
Quantity: 3 pieces
-
Nominal Capacitance: 200 µF
-
Tolerance: ±5%
-
Rated AC Voltage: 330 V AC
-
Rated DC Voltage: 900 V DC
-
Insulation Voltage Ui: 3 kV
-
Operating Temperature: −40 °C … +70 °C
-
Standard: IEC 1071-1/2
-
Protection: SH Overpressure Disconnector
-
Construction: Film power capacitor with cylindrical metal housing
-
Mounting: Screw terminals/studs and mechanical mounting
-
Condition: Used, with visible surface signs of previous use and handling
⚡ Function
These capacitors are designed for power circuits, where their high capacitance can be used for temporary energy storage, filtering, voltage stabilization and support of power conversion and energy management circuits.
The 330 V AC / 900 V DC ratings make them suitable for power circuits operating at significantly higher voltages than standard electronic capacitors.
🏭 Construction & Installation

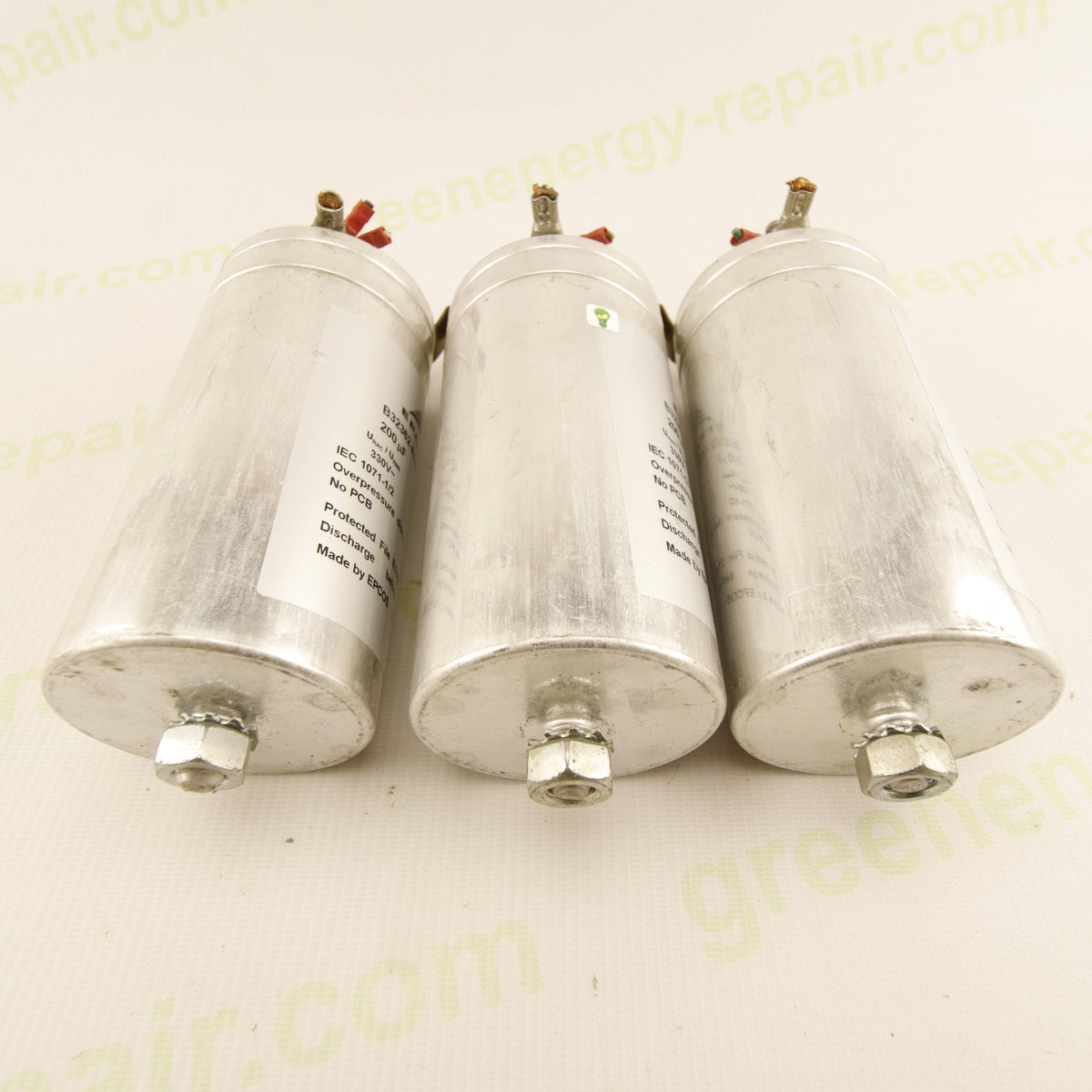

The cylindrical metal housing provides a robust construction suitable for industrial applications. The upper terminals allow electrical connection, while the lower mounting system provides mechanical fixation.

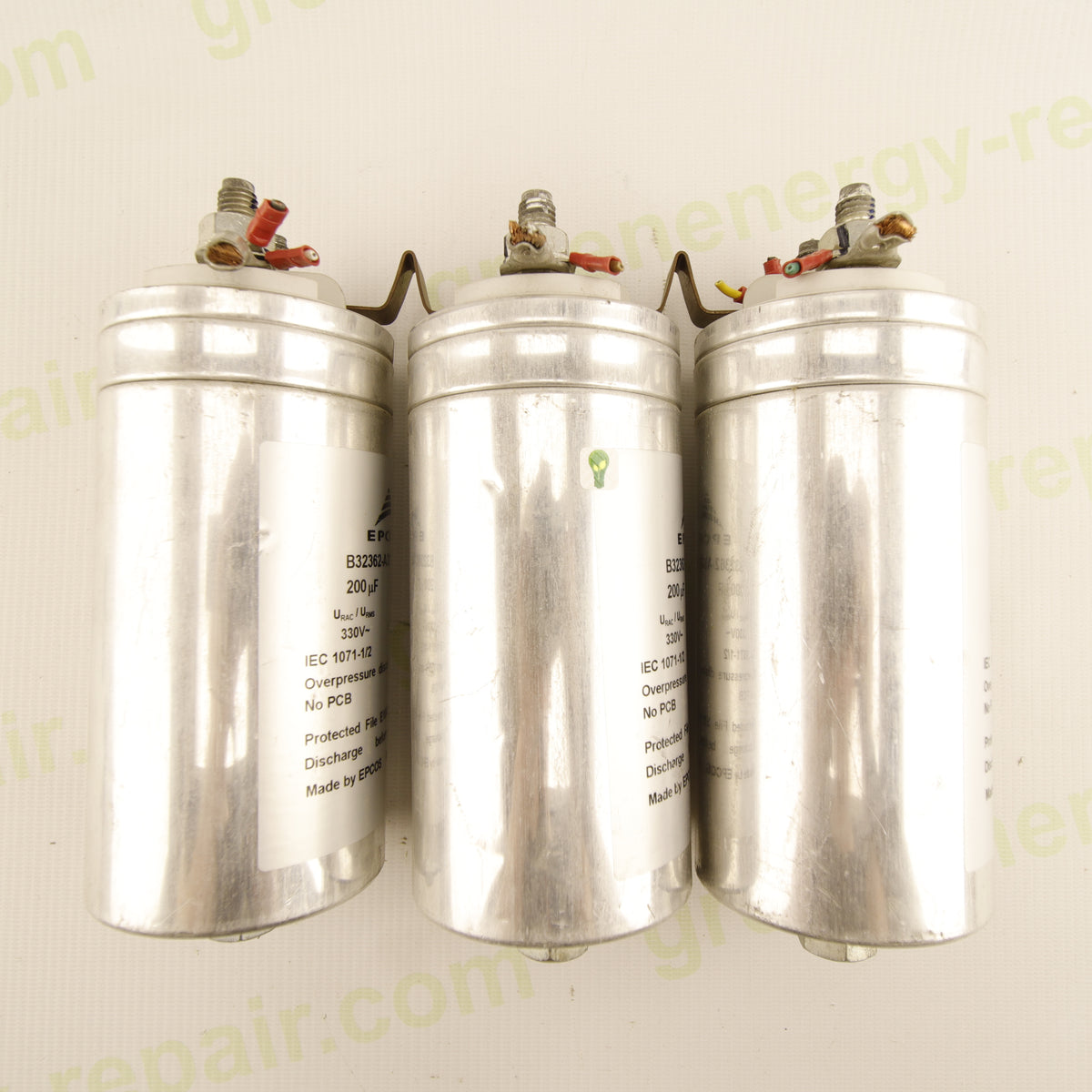

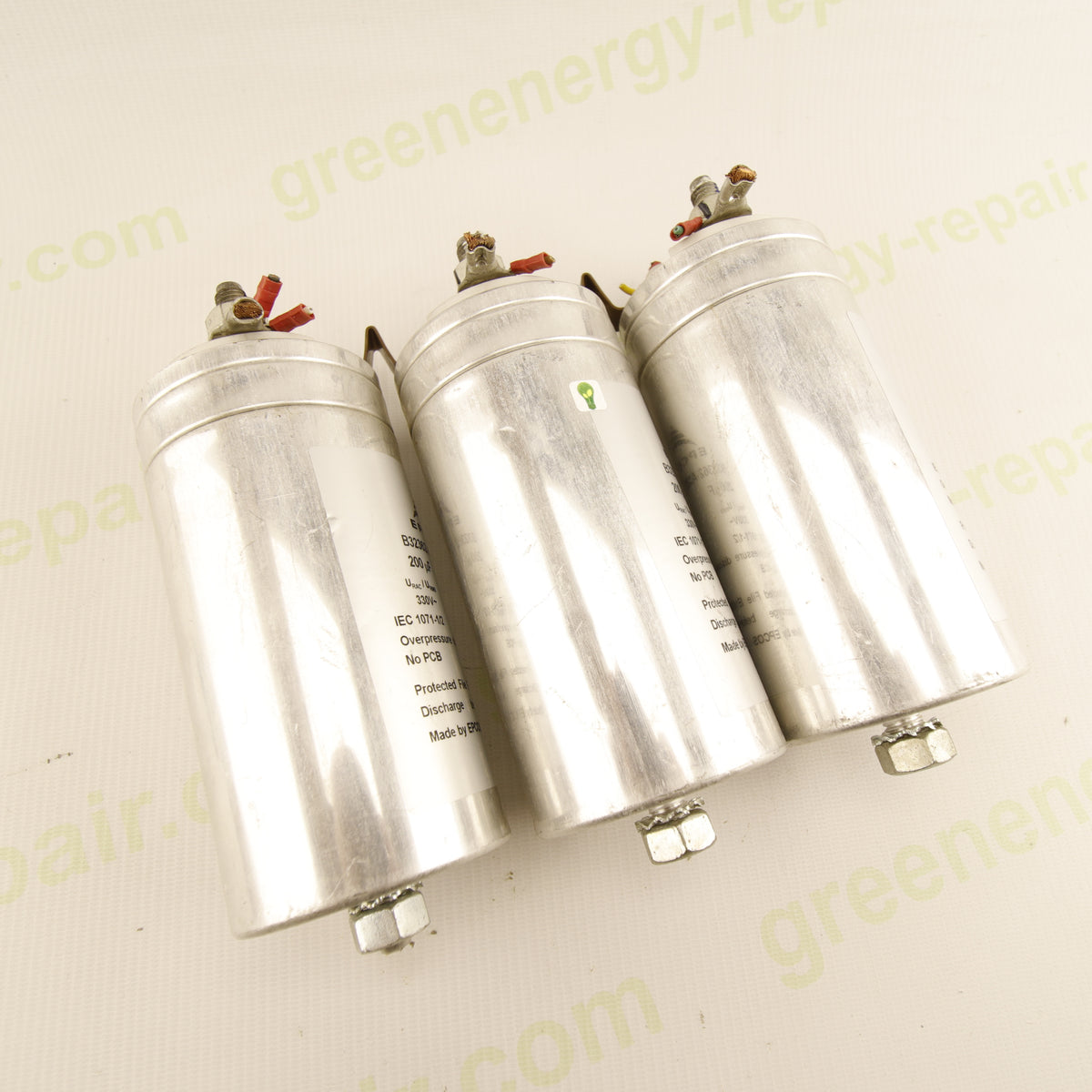

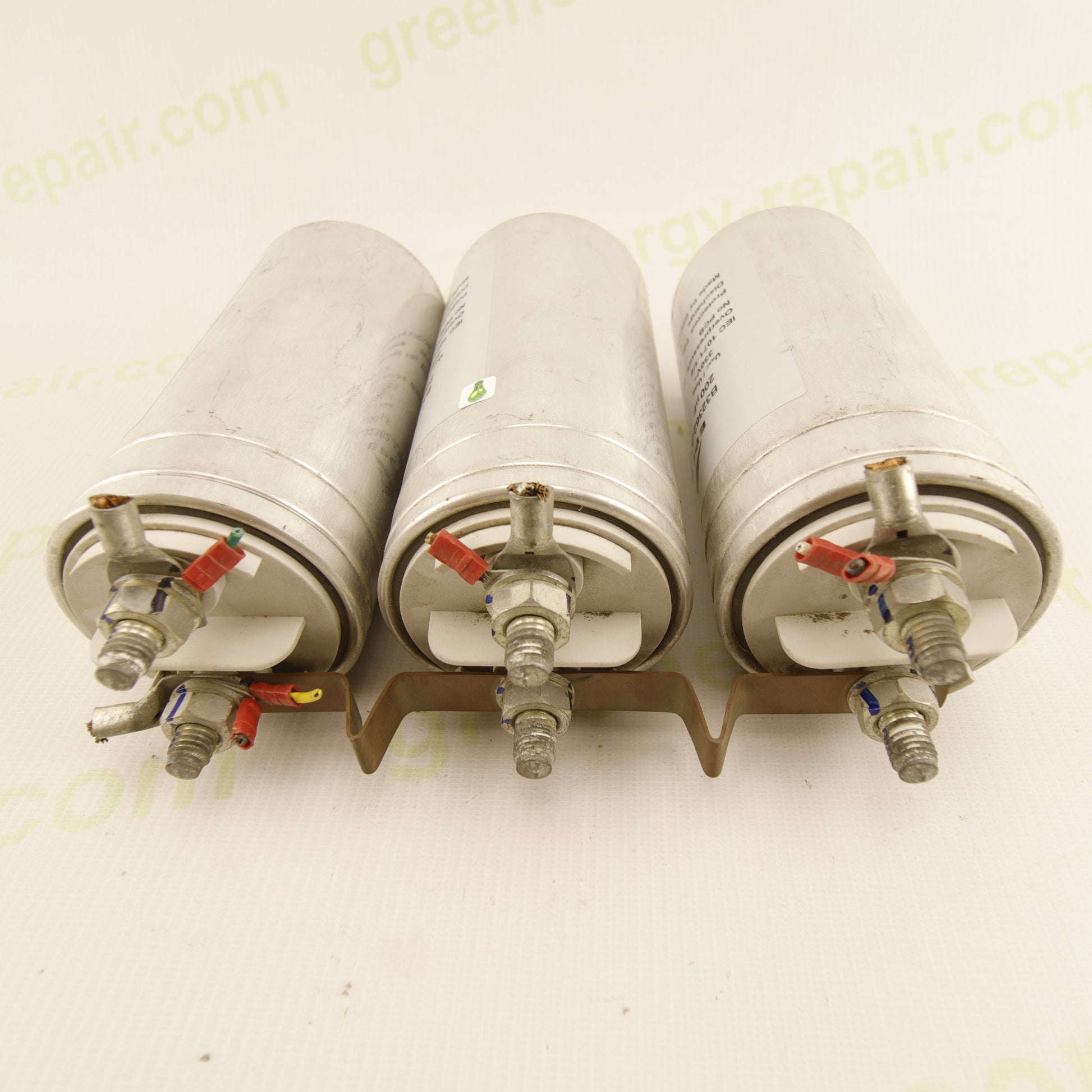

The photographs show the terminals, connections and a metal bracket holding the three capacitors together. Before installation, it is recommended to verify the condition of the terminals, insulation, actual capacitance and absence of leakage or physical damage.
🌐 Applications
Suitable, subject to electrical compatibility, for:
- Power electronics
- Energy conversion systems
- DC-link circuits
- Power filtering
- Energy storage
- Industrial equipment
- Power supply systems
- High-capacitance AC/DC applications
The specific model is also identified as a polypropylene film capacitor with 200 µF capacitance and stud/terminal mounting.
💡 Key Advantages
- High capacitance of 200 µF
- High rated voltage up to 900 V DC
- Suitable for AC and DC applications according to the specified ratings
-
±5% capacitance tolerance
- Robust metal construction for industrial applications
- SH overpressure safety disconnector
- Supplied as a set of 3 capacitors
- Metal mounting bracket included as shown in the photographs
🛡️ Safety & Product Condition
The capacitors are used products and show signs of previous use, including surface abrasions and oxidation/dirt on the visible terminals, as shown in the photographs.
The photographs alone cannot confirm whether the capacitance, ESR, ripple current capability or insulation are still within the original specifications.
Electrical operation is therefore not guaranteed without instrumental testing. Before use, it is recommended to check capacitance, insulation resistance and the condition of the terminals.
⚠️ Safety warning: Capacitors can retain a dangerous electrical charge even after disconnection. They must be properly discharged before handling or testing.
📦 Package Contents
- 3 × EPCOS B32362-A3207-J030 200 µF capacitors
- Metal support/bracket as shown in the photographs
- Sold in their current used condition, without a guarantee of untested electrical operation.
