📝 Description
New product. EcoDHOME MCEE Solar kit for monitoring household electricity consumption and photovoltaic system production. The system uses wireless transmitters with clamp-on current sensors and a monitoring unit with an LCD display, allowing energy data to be viewed without accessing the inverter directly.
According to the manufacturer's manual, the monitor allows users to compare production and consumption, view the energy balance, and access historical data relating to energy, costs and CO₂ emissions. Communication between the transmitters and monitor takes place via radio at 433.92 MHz, with a stated range of up to approximately 30 metres in open space.
⚙️ Main Specifications
-
Manufacturer: EcoDHOME / SmartDHOME
-
Model: MCEE Solar
-

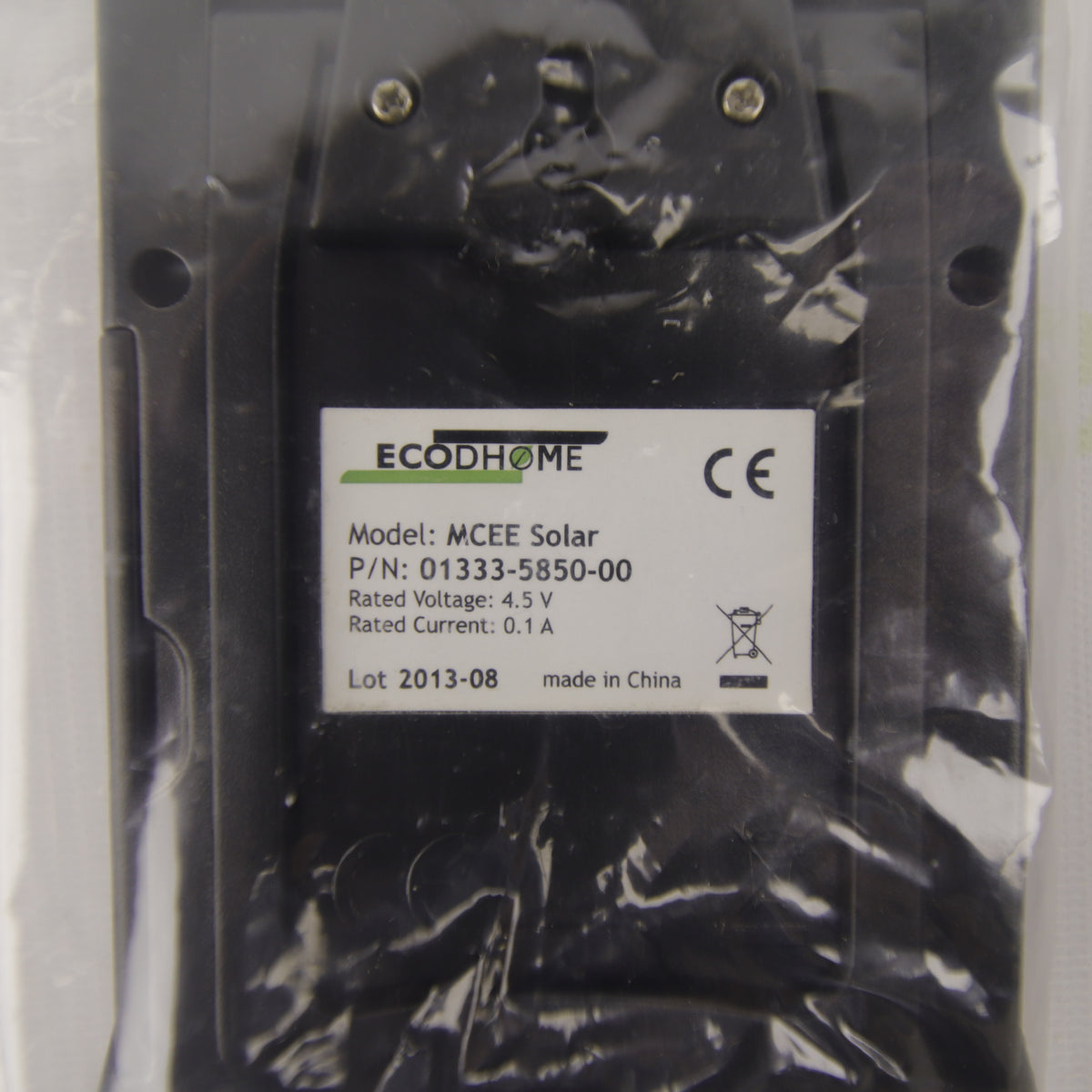

Monitor code: 01333-5850-00
-
Smart Socket code shown on packaging: 01333-5840-00
-
Batch: 2013-08
-
Display: LCD with control keypad
-
Communication: Wireless at 433.92 MHz
-
Stated radio range: Up to 30 m in open space
-
Monitor power supply: External power adapter
-
Measurement: Clamp-on sensors, without interrupting the conductor
-
Documentation: User manual included
🔌 Main Functions
-
Photovoltaic production monitoring: Displays the energy produced by the system.
-
Consumption monitoring: Measures electricity consumption in residential or commercial premises.
-
Energy balance: Compares energy produced with energy consumed.
-
Historical data: Displays consumption, production and energy balance values over different periods.
-
Energy cost estimates: Displays financial values based on the configured tariffs.
-
Visual and audible alarm: Indicates when the energy balance is negative.
-
Compatible smart socket management: Allows control of supported Smart Socket devices, also available separately.
🧩 Compatibility and Measurement
The system is designed to monitor photovoltaic systems and residential or commercial electricity consumption.
The manual specifies:
-
Sensor with 10 mm opening: Approximate measurement range of 0.2 A to 60 A per phase.
-
Sensor with 25 mm opening: Approximate measurement range of 0.25 A to 100 A per phase.
-
Three-phase systems: Additional sensors are required and may not be included in the standard kit.
📦 Package Contents

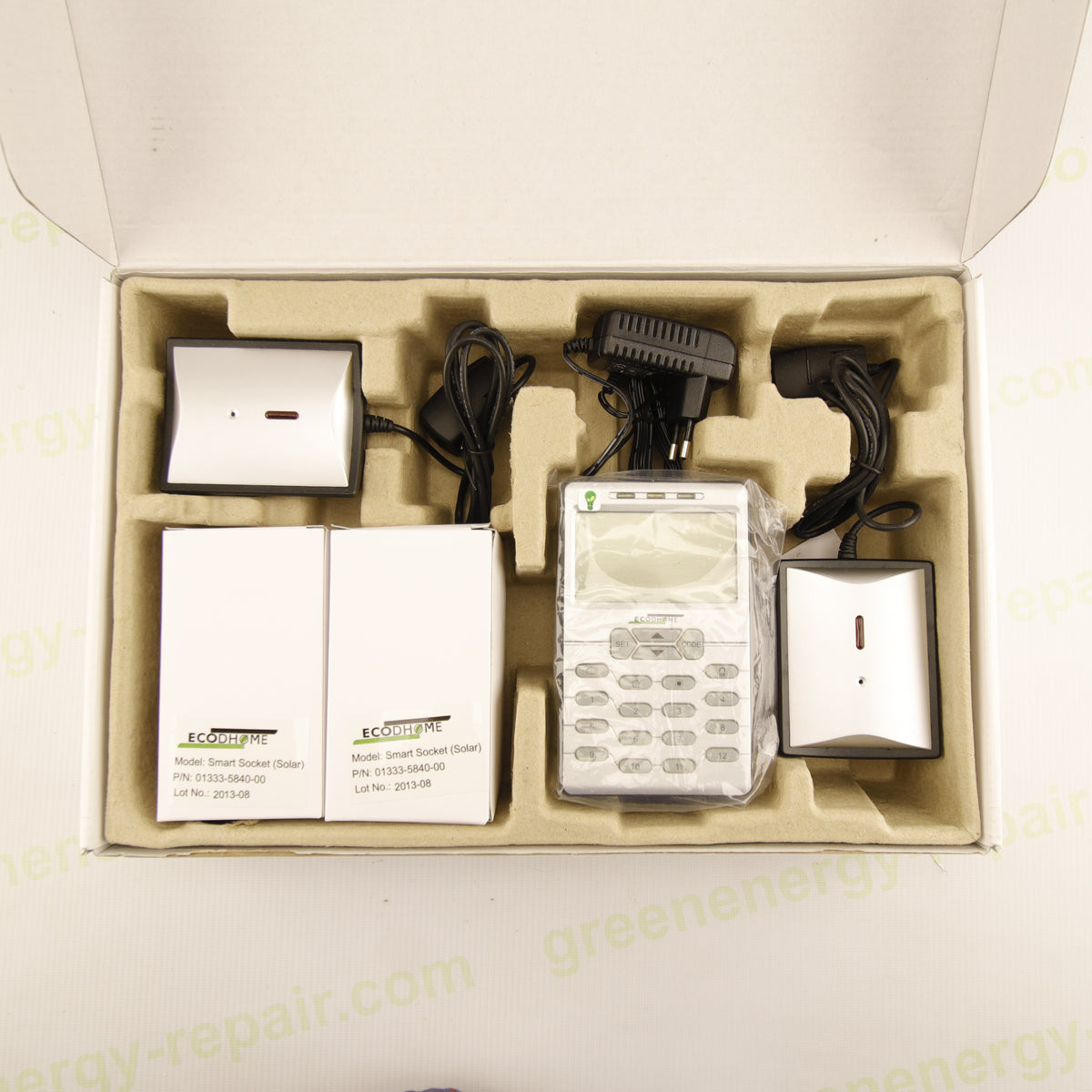

Based on the photographs:

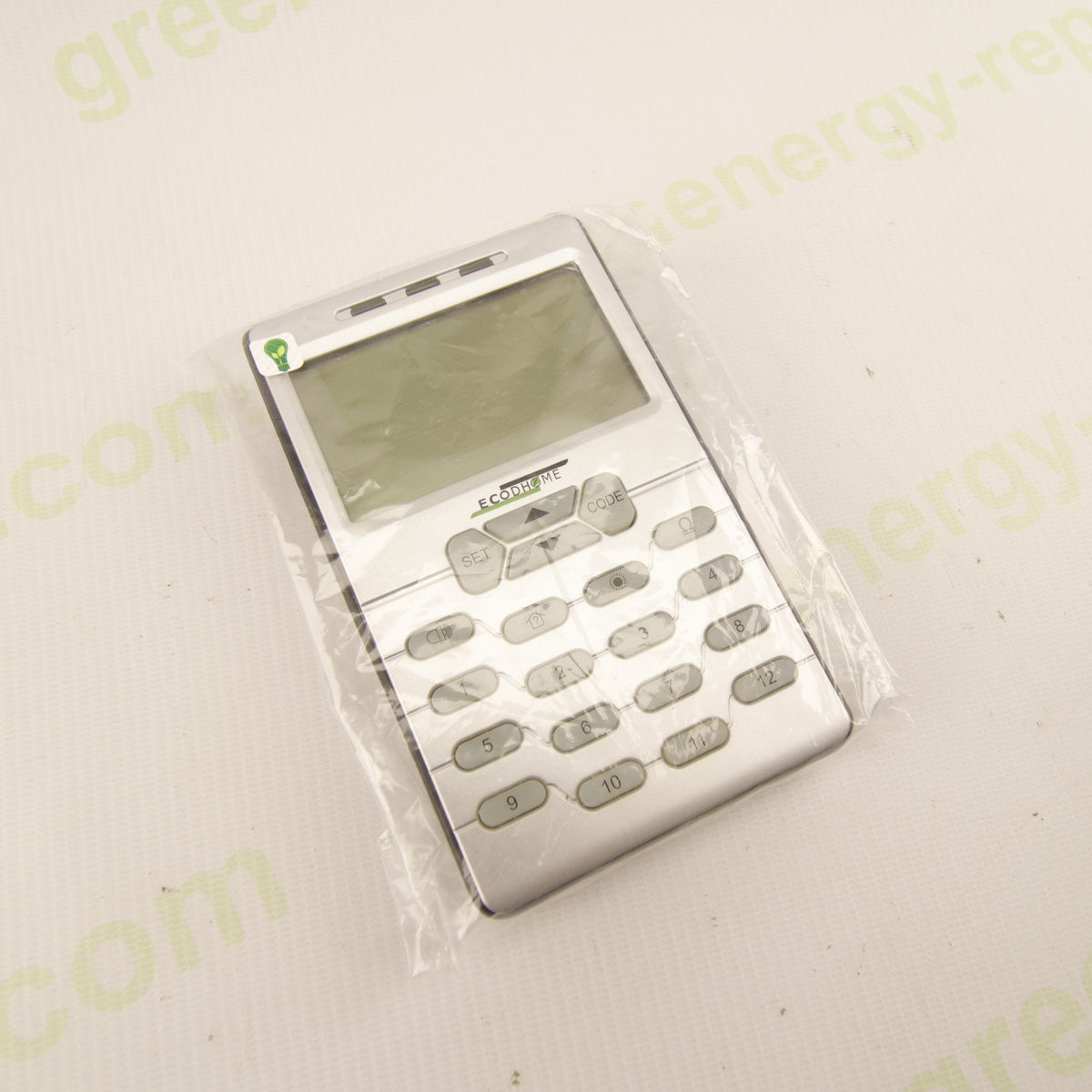

- 1 EcoDHOME MCEE Solar monitor with LCD display and keypad.
- 2 white devices identified on the packaging as Smart Socket (Solar).
- 2 power adapters/accessories visible in the package.
- Cables and accessories present in the original tray.

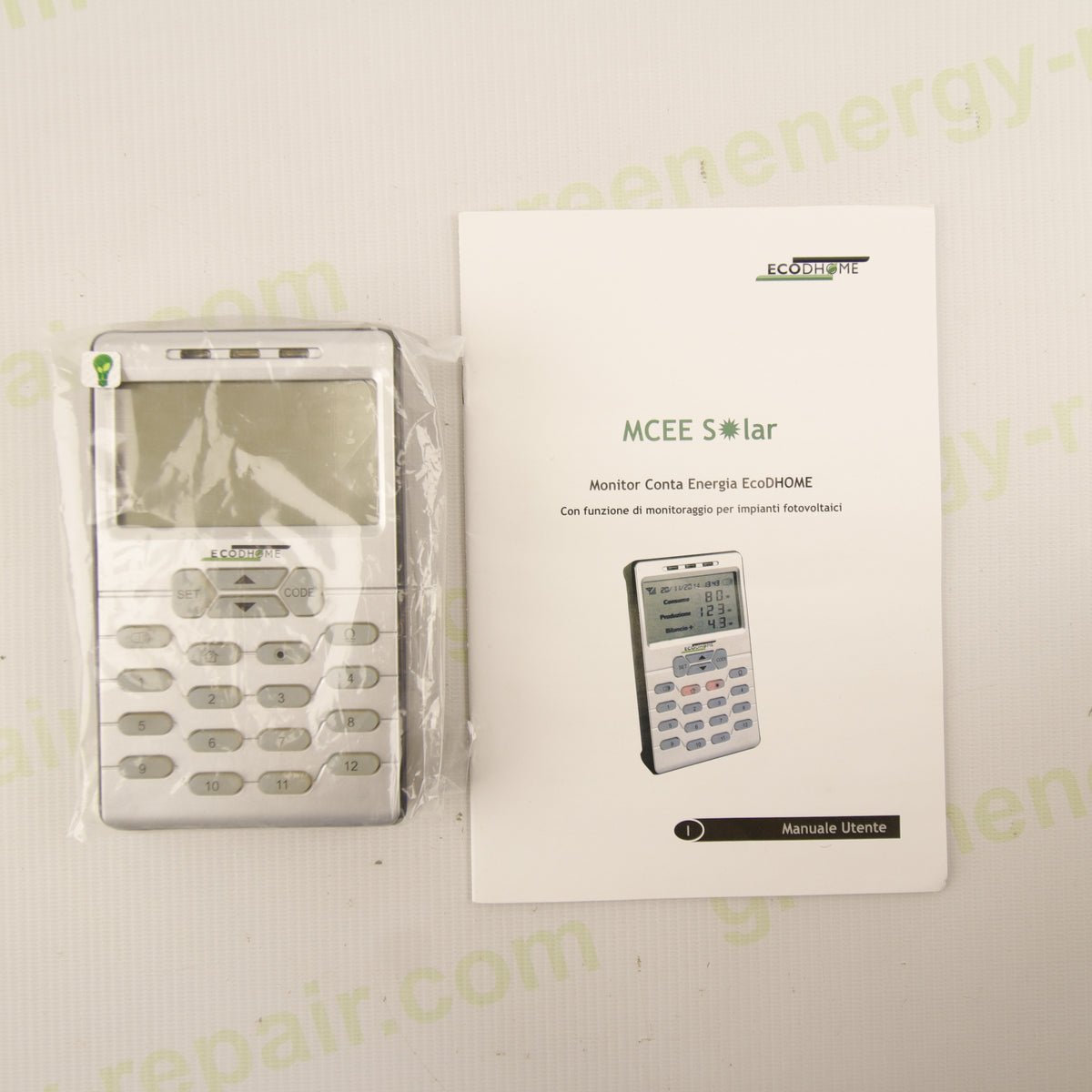

- 1 user manual.

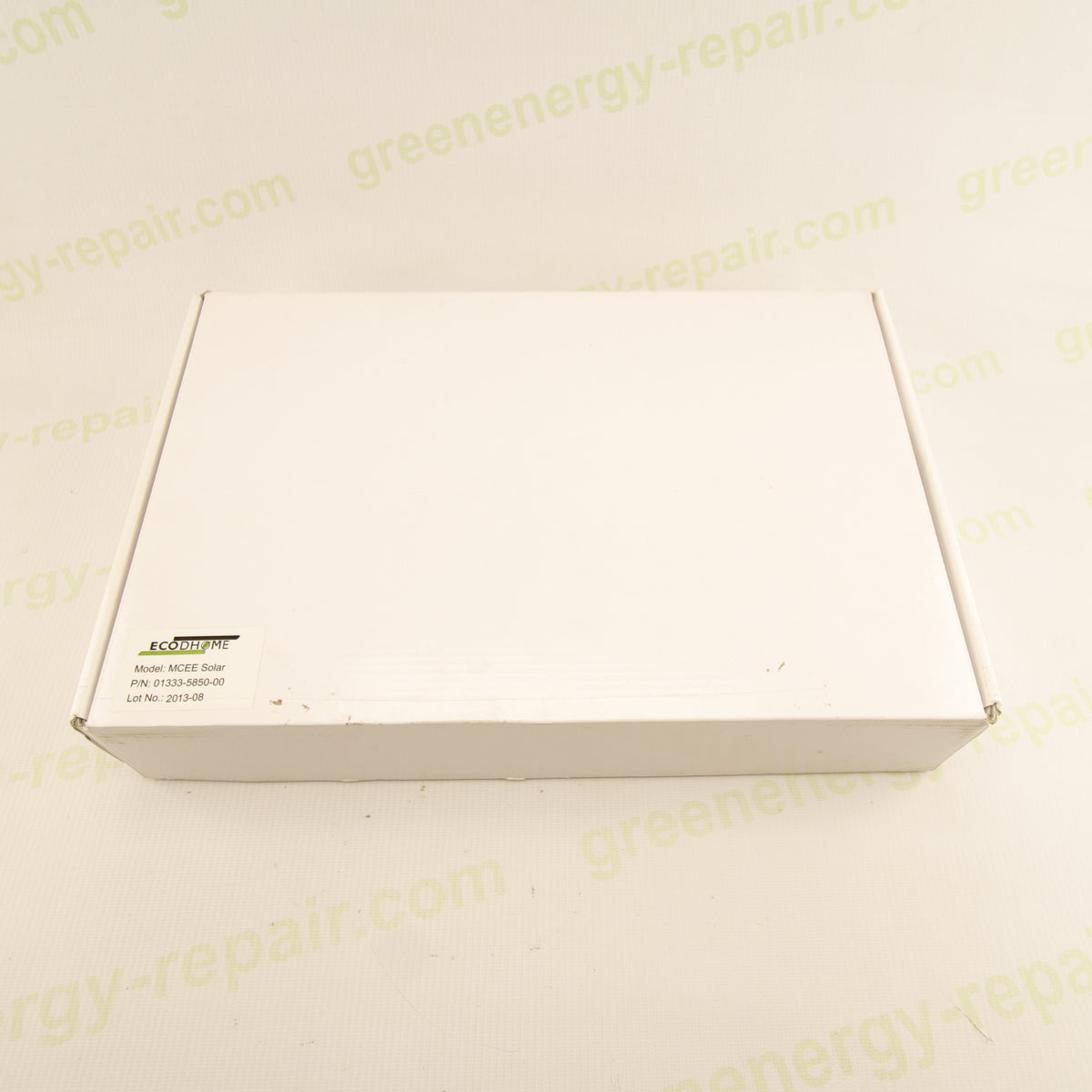

- Original packaging.
🛡️ Product Condition
- Product from a dated production batch, August 2013.
- Monitor stored in its packaging and protected by plastic wrapping.
- Box and accessories included as shown in the photographs.
- Functionality has not been tested.
- Compatibility of individual accessories must be checked before commissioning.
🛠️ Applications
- Household energy monitoring.
- Monitoring the relationship between photovoltaic production and electricity consumption.
- Analysis of electricity consumption and historical data.
- Replacement or expansion of an existing EcoDHOME MCEE Solar system.
💡 Advantages
- Immediate access to energy data.
- Wireless connection between transmitters and monitor.
- Access to energy balance information and historical data.
- Potential integration with compatible smart sockets.
🟢 Summary
EcoDHOME MCEE Solar kit, code 01333-5850-00, designed for wireless monitoring of photovoltaic production and electricity consumption. Includes an LCD monitor, power adapters, accessories and user manual. Sensor completeness and functionality must be verified.
